Fire Hose vs. Fire Hydrant: Understanding the Differences and Proper Usage- Ningbo Kaituo Valve Co., Ltd.

Briefly introduce fire hoses and fire hydrants
A fire hose is a high-pressure hose that carries water or other fire retardants to a fire to extinguish it. A fire hydrant is a connection point to a water supply system.

Define their roles in firefighting
A fire hose's primary role is to deliver water to the fire. A fire hydrant's primary role is to provide a water source for the fire hose and fire engine.

Highlight the importance of understanding their differences
Knowing the distinct functions, components, and proper usage of each is crucial for effective and safe firefighting operations.

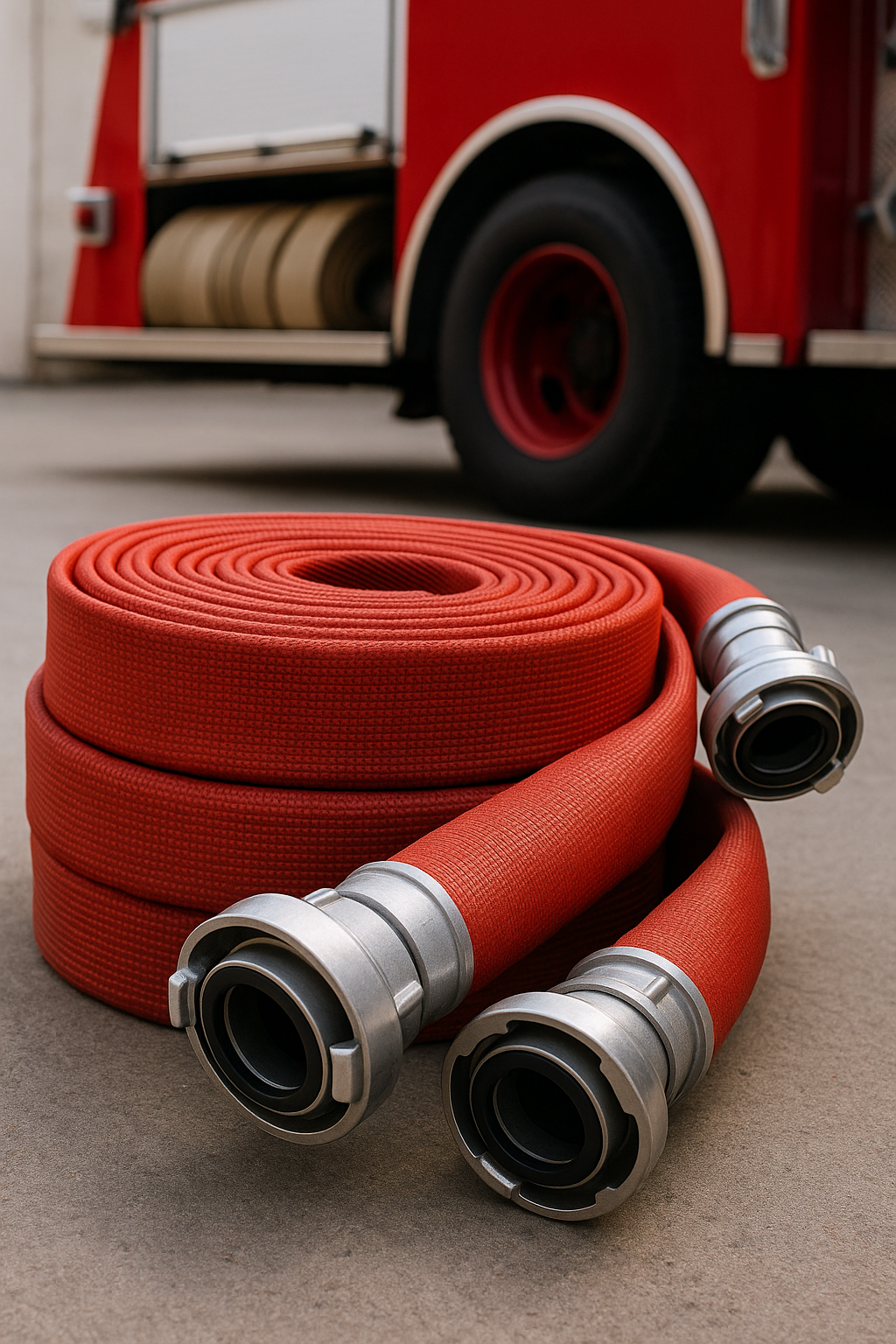

What is a Fire Hose?

Definition and Purpose

Explain what a fire hose is A flexible, high-pressure tube designed to carry water.

Describe its primary function
To transport water from a source to the point of a fire to facilitate fire suppression.

Components of a Fire Hose

Inner Lining: Explain that the inner lining is made of rubber or synthetic materials to prevent water from leaking and to provide a smooth waterway for efficient flow.
Reinforcement Layer: Describe the reinforcement layer, typically made of woven synthetic fibers like polyester, which gives the hose its strength and ability to withstand high pressure.
Outer Cover: Mention the outer cover (or jacket) which protects the hose from abrasion, heat, and chemicals.
Couplings: Explain that couplings are the metal connectors at the ends of the hose, used to join multiple sections together or to connect the hose to a hydrant, nozzle, or fire engine.

Types of Fire Hoses

Attack Hoses: Designed for direct firefighting, they are generally smaller in diameter (e.g., 1.5-inch or 1.75-inch) for maneuverability and high pressure.
Supply Hoses: Used to transport large volumes of water over long distances, these have a larger diameter (e.g., 3-inch or 5-inch) and are not intended for direct attack.
Forestry Hoses: Lightweight and flexible, these hoses are specifically designed for wildland firefighting, often over uneven terrain.
Booster Hoses: Small-diameter, rubber-covered hoses that retain their shape and are typically stored on a reel, used for small fires or mop-up operations.

Feature	Attack Hose	Supply Hose	Forestry Hose	Booster Hose
Primary Function	Delivers water directly to the fire for suppression.	Transports large volumes of water from a source to a fire engine or another pumper.	Delivers water to fires in wildland or rough terrain.	Used for small, incipient fires and vehicle fires.
Common Sizes	1.5-inch to 2.5-inch diameter.	3-inch to 6-inch diameter. Often called Large Diameter Hose (LDH).	1-inch to 1.5-inch diameter.	0.75-inch to 1-inch diameter.
Pressure	Designed for high pressure (up to 400 psi) to create a powerful stream.	Designed for lower pressure, focusing on high volume (often under 200 psi).	Designed for high pressure (up to 450 psi) to overcome friction loss over long distances.	Designed to withstand very high pressures (up to 800 psi).
Construction	Double-jacketed for durability and abrasion resistance. Often has a synthetic rubber or polyurethane inner lining.	Single-jacketed, with a thicker rubber or plastic lining to handle high volume and reduce friction loss. Can be rigid or flexible.	Lightweight, single-jacket construction for easy handling and long carries. Often percolates water to protect against embers.	Rigid, rubber-covered hose that is non-collapsible. Stored on a reel.
Maneuverability	High maneuverability for use inside buildings and close-quarters firefighting.	Lower maneuverability due to large size and weight when charged with water.	Very high maneuverability, designed to be carried over rough, uneven terrain.	High maneuverability due to its small size and storage on a reel for quick deployment.
Storage	Flat-layed in a hose bed on a fire engine, in a pre-connected bundle, or coiled.	Flat-layed in a hose bed on a fire engine.	Tightly rolled or placed in a special hose pack for carrying on a firefighter's back.	Stored on a reel on the fire engine.

How Fire Hoses Work

Connecting to a water source: Describe how firefighters connect the hose's coupling to a water source like a fire hydrant or the pump on a fire engine.

Controlling water flow and pressure: Explain that the flow and pressure are controlled by valves on the hydrant, pumper, or at the nozzle itself.

Proper handling and deployment techniques: Briefly mention the need to lay the hose out without kinks, which can restrict water flow and cause damage.

What is a Fire Hydrant?

Definition and Purpose

Explain what a fire hydrant is
A fire hydrant is an active fire protection device, a point of connection by which firefighters can tap into a water supply. It's an essential component of a municipal water system for fire suppression.

Describe its primary function
Its main function is to provide a readily available and reliable source of water for fire engines and hoses, ensuring a continuous and high-volume water flow to fight fires.

Components of a Fire Hydrant

Barrel: The main vertical pipe or casing of the hydrant, which is installed underground and contains the valve mechanism.
Nozzle Outlets: The ports on the exterior of the hydrant where fire hoses are connected. They typically consist of one large pumper nozzle and one or more smaller hose nozzles.
Valve: The internal mechanism that controls the flow of water. It's opened or closed to allow water to flow from the main water supply into the hydrant barrel and out through the nozzles.
Operating Nut: A specialized nut located on top of the hydrant, used by firefighters with a hydrant wrench to operate the valve and turn the water on or off.

Types of Fire Hydrants

Dry-Barrel Hydrants: Used in cold climates where the ground can freeze. The main valve is located below the frost line, and the barrel remains dry to prevent water from freezing inside the hydrant. When the valve is opened, water flows up the barrel. After use, the water drains out through a weep hole.
Wet-Barrel Hydrants: Used in warmer climates where freezing is not a concern. The hydrant barrel is always full of water and pressurized up to the valves at the nozzle outlets. They are simpler in design and easier to operate.

Feature	Dry-Barrel Hydrant	Wet-Barrel Hydrant
Climate Suitability	Cold climates where freezing is a concern.	Warm climates where freezing is not a concern.
Water Location	Water is stored below ground, below the frost line. The barrel is dry when not in use.	Water is continuously present in the barrel, up to the outlet valves.
Valve Mechanism	A single main valve is located at the bottom, below the frost line.	Each outlet has its own valve located at the nozzle.
Operation	To use, the main valve is opened using an operating nut and a stem, which allows water to flow up into the barrel.	To use, the valve at the desired outlet is opened. Water is immediately available.
Draining	After use, the hydrant is designed to drain itself through a weep hole at the bottom, ensuring no water remains to freeze.	Water is always in the barrel, so there is no draining mechanism.
Maintenance	More complex maintenance due to the underground valve and draining system. Requires regular checks to ensure proper drainage.	Simpler maintenance as all working parts are above ground. Requires regular flushing to prevent sediment buildup.
Cost	Generally more expensive to install and maintain due to the more complex design.	Generally less expensive to install and maintain due to the simpler design.
Susceptibility to Freezing	Very low risk of freezing since the barrel is dry.	High risk of freezing in cold weather, which can damage the hydrant and make it unusable.

How Fire Hydrants Work

Accessing the water supply: The hydrant is connected to an underground municipal water main.

Opening and closing the valve: To activate the hydrant, firefighters use a hydrant wrench to turn the operating nut, which opens the main valve. This allows water to flow from the main into the hydrant and out the nozzles. Closing the valve reverses this process.

Ensuring proper water pressure and flow: The hydrant's performance is dependent on the pressure and volume of the municipal water system. Firefighters check the pressure before use to ensure it's adequate for the firefighting operation.

Preventing water hammer: Firefighters open and close the hydrant's valve slowly to prevent "water hammer"—a pressure surge that can damage the hydrant, the hose, or the water main.

Key Differences Between Fire Hoses and Fire Hydrants

Function

Fire Hose: Its function is to deliver water from a source to the fire. It is a tool of transport.
Fire Hydrant: Its function is to provide a water source. It is a point of supply.

Components

Fire Hose: Composed of an inner lining, reinforcement layer, outer cover, and couplings.
Fire Hydrant: Composed of a barrel, operating nut, valve, and nozzle outlets.

Operation

Fire Hose: Operated by controlling the flow and pressure of water through it, often with a nozzle.
Fire Hydrant: Operated by a firefighter using a wrench to turn a nut, which opens an internal valve to release water from the main supply.

Maintenance

Fire Hose: Requires regular inspection for damage, cleaning, drying, and pressure testing.
Fire Hydrant: Requires regular flushing, lubrication of internal components, and inspection for leaks or obstructions.

Feature	Fire Hose	Fire Hydrant
Primary Function	To deliver water from a source to a fire.	To provide a connection to a pressurized water supply system.
Role in Firefighting	A tool for water transport and application.	A point of water supply and infrastructure.
Typical User	Firefighters and trained personnel.	Firefighters and authorized municipal workers.
Operation	The flow is controlled by a nozzle and a valve at the source (hydrant or pumper).	Operated by a wrench to open/close an internal valve.
Physical Form	Flexible, portable, and coiled or folded for storage.	A fixed, rigid installation, typically found above or below ground.
Typical Pressure	Varies widely, but designed to handle high pressures (e.g., 8 to 20 bar / 116 to 290 psi working pressure, up to 110 bar / 1,600 psi bursting pressure).	Must maintain a minimum residual pressure (e.g., 20 psi).
Typical Flow Rate	Varies by hose diameter and application. Attack Hoses: 150-250 GPM Supply Hoses: Up to 1,500 GPM or more.	Varies by size and municipal water supply. Low Flow (Red): Under 500 GPM Medium Flow (Orange/Yellow): 500-999 GPM High Flow (Green): 1,000-1,499 GPM Very High Flow (Blue): 1,500+ GPM
Connection Points	Couplings (e.g., NST or Storz) connect sections to a water source and a nozzle.	Nozzle outlets (e.g., 2.5-inch and 4.5-inch pumper connections) provide the access points for hoses.
Maintenance	Requires frequent cleaning, drying, and pressure testing to ensure it is free from leaks and damage.	Requires periodic flushing to remove sediment, lubrication of moving parts, and inspection for leaks.
Location	Stored on a fire engine, a reel, or in a cabinet. Deployed as needed.	Permanently installed on streets, private property, or industrial sites.
Key Components	Inner lining, reinforcement layer, outer cover, and couplings.	Barrel, operating nut, valve, and nozzle outlets.
Types	Attack, Supply, Booster, and Forestry hoses.	Dry-barrel (for cold climates) and Wet-barrel (for warm climates).

Proper Usage and Safety Guidelines

Fire Hose

Inspecting hoses for damage: Before and after use, check for cuts, abrasions, burns, or other signs of wear that could compromise its integrity.
Properly connecting and disconnecting hoses: Ensure couplings are securely fastened to prevent leaks and blow-offs under pressure.
Avoiding kinks and twists: Lay the hose out in a way that avoids sharp bends, which can restrict water flow and cause dangerous pressure build-up.
Maintaining appropriate pressure: Use a pressure gauge to ensure the water pressure is within the hose's rated capacity to prevent damage or failure.

Fire Hydrant

Checking for proper water pressure: Before connecting, a firefighter may use a gauge to ensure the hydrant is providing sufficient pressure and flow for the intended operation.
Ensuring proper drainage after use: For dry-barrel hydrants, confirm that all water has drained out of the barrel to prevent freezing and damage.
Reporting any malfunctions: If a hydrant is found to be leaking, damaged, or has low pressure, it should be immediately reported for repair.
Clearing obstructions around the hydrant: The area around a hydrant should be kept clear of snow, vehicles, or other debris to ensure it is easily accessible in an emergency.

Common Problems and Solutions

Fire Hose

Leaks: Often caused by cuts or punctures. Small leaks can sometimes be temporarily fixed with clamps, but the hose should be removed from service and repaired or replaced.
Kinks and Twists: Prevention is key—deploy the hose properly and maintain tension. If a kink occurs, it must be straightened immediately to restore flow and prevent hose rupture.
Damage from heat or chemicals: Prevention involves keeping hoses away from fire and hazardous materials. Damaged sections must be cut out and the hose spliced or replaced.

Fire Hydrant

Low Water Pressure: Can be caused by a broken water main, a partially closed valve, or heavy demand on the system. The solution may require notifying the water department or using an alternative water source.
Frozen Hydrants: Thawing techniques include using approved heaters or steam to melt the ice, but this must be done carefully to avoid damage. Prevention is best, and includes regular flushing in cold weather.
Leaks: Leaks from the nozzle caps or base can indicate worn gaskets or a damaged valve. Repair requires specialized tools and expertise from the water department.

Maintenance and Inspection

Fire Hose

Regular cleaning and drying: After use, hoses should be thoroughly cleaned and completely dried to prevent mold, mildew, and rot.
Pressure testing: Hoses are regularly tested at specified pressures to ensure they can withstand the demands of firefighting. This is a critical safety measure.
Proper storage: Hoses should be rolled or folded correctly and stored in a cool, dry place, out of direct sunlight and away from chemicals.

Fire Hydrant

Regular flushing: Hydrants are flushed periodically to clear out rust and sediment, ensuring clear water flow.
Lubrication of moving parts: The operating nut and valve stem should be lubricated regularly to ensure they function smoothly.
Inspection for leaks and damage: Routine inspections are conducted to check for external damage, leaks, and signs of tampering.
