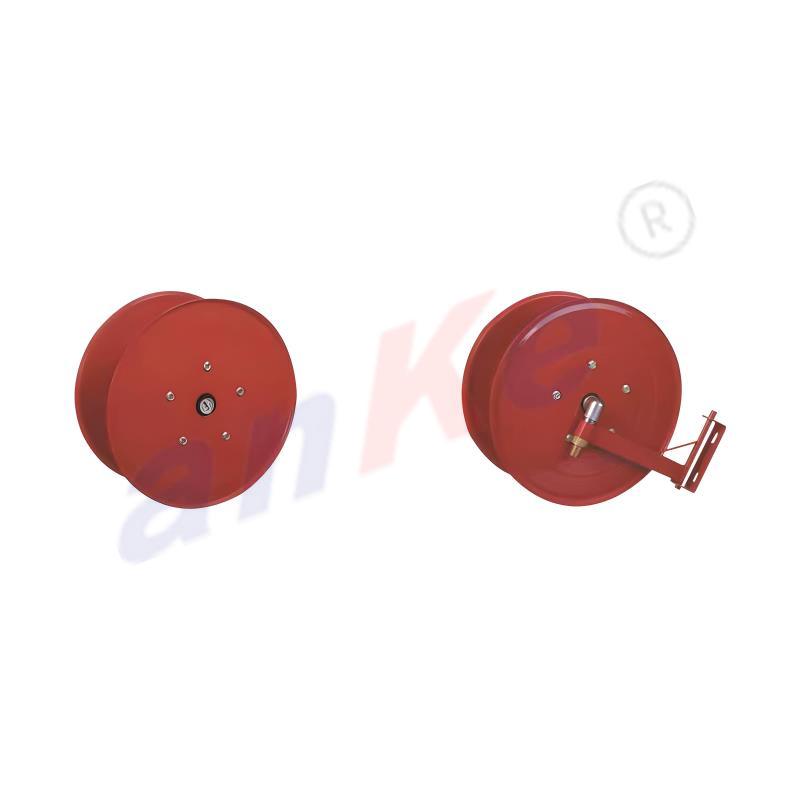

Swing Manual Type Fire Fighting Fire Hose Reel

Product Overview and Core Value Proposition

The Swing Manual Type Fire Hose Reel combines a powerful, standard-compliant water delivery system with an ergonomic, flexible mounting design. This product is engineered for maximum operational efficiency, low maintenance, and seamless integration into various architectural environments.

Key Performance Advantages

Extended Reach: Equipped with a 25 mm×30 m hose, ensuring extensive coverage radius critical for large area protection.

Operational Flexibility: The integrated Swinging mechanism allows for up to 180∘ pivot action, facilitating swift and accurate fire suppression from complex angles.

Space Efficiency: Optimized dimensions allow for streamlined recessing into minimum cabinet spaces, supporting aesthetic building design without compromising accessibility.

Functional and Structural Description

1. Swinging Mechanism for Enhanced Deployment

The core feature of this model is its swinging bracket, which permits a $\pm 90^{\circ }$ rotation from its secured position, providing a total operational arc of up to $180^{\circ }$. This flexibility is crucial in emergency situations, enabling the operator to adjust the water stream direction rapidly towards the fire source without physical repositioning the entire hose reel cabinet. This feature significantly reduces response time, particularly in confined spaces or corridors.

2. Hose System Integrity

The $30\text{ meter}$ length of the $25\text{ mm}$ diameter hose is manufactured from durable, high-pressure resilient materials. The manual operation ensures reliability and consistency in water flow, delivering a continuous jet for effective fire control. The hose and reel assembly are designed for smooth, non-kinking payout and efficient manual rewinding after use.

3. Installation and Space Integration

The compact physical dimensions ($815\text{ mm}\times 600\text{ mm}\times 290\text{ mm}$) are optimized for integration into modern building structures. The required minimum cabinet size ($915\text{ mm}\times 775\text{ mm}\times 310\text{ mm}$) ensures that the reel fits securely within standard recessed fire boxes, maintaining clear access and full operational capacity.

Application Scope and Compliance

Ideal Application Environments:

Commercial High-Rise Buildings and Office Complexes

Manufacturing Facilities and Industrial Warehouses

Educational Institutions and Healthcare Facilities

Hotels and Public Assembly Spaces

This hose reel is constructed using corrosion-resistant and robust components, adhering to relevant international and local fire safety standards to ensure long-term durability and operational compliance.
